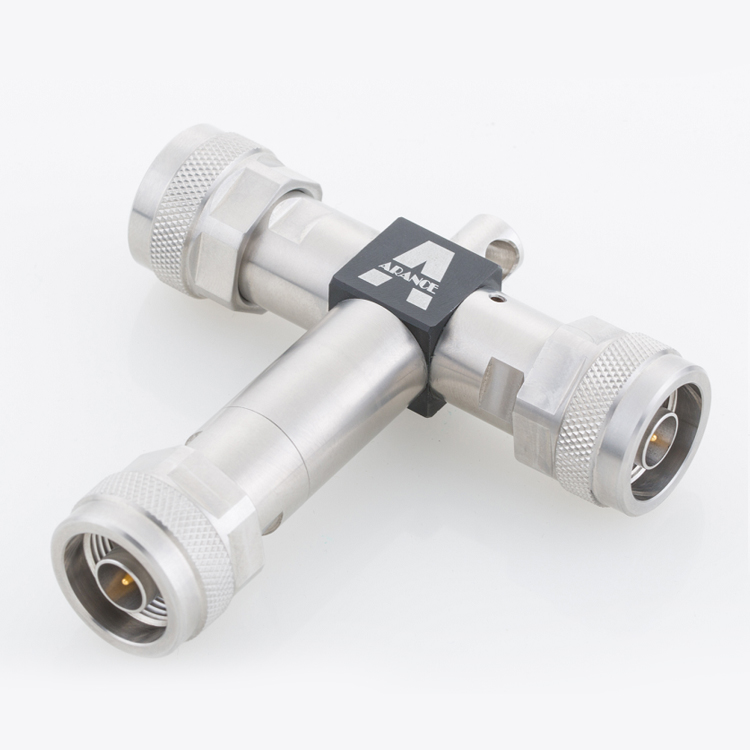

ETESTING Calibration Kit.
stable, repeatable，Reliable
Precise, Durable
|

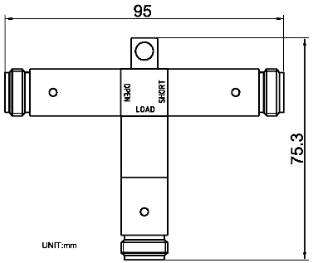

Integrated calibration kit is mechanically integrated by single calibration kit, also known as Type-T calibration kit.
Suitable for outdoor application and engineering test Maximum operating frequency up to 9 GHz(characteristic impedance50Ω), Type-N connector. |
Features |
|
|

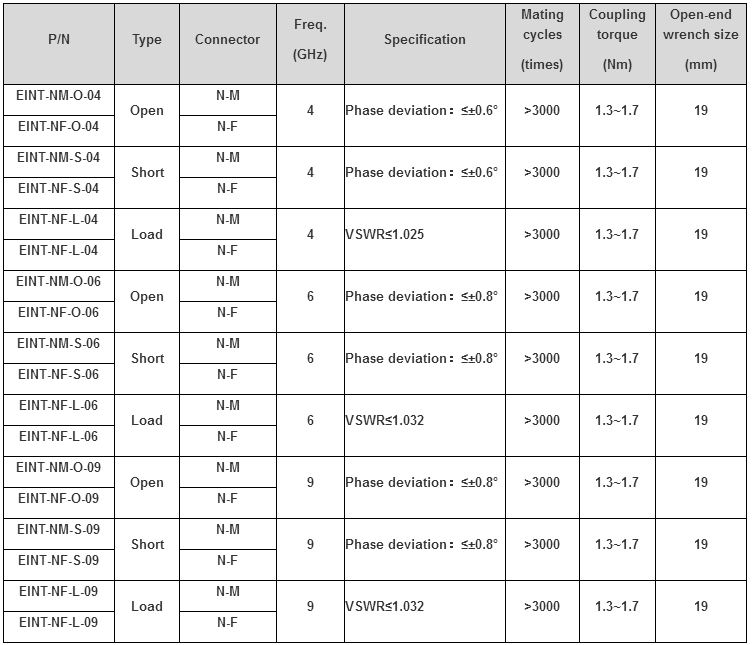

P/N |
EINT-NF-OSL-09 |
|
|
Connector |
N-F |
|
|
Freq.(GHz) |
9 |
|
|
Specification |
Open；Phase deviation：≤±0.8° |
|
|
Short；Phase deviation：≤±0.8° |
||
|
Load；VSWR≤1.032 |
||
|
Mating Cycles (times) |
>3000 |
|
|
Coupling Torque(Nm) |
1.3~1.7 |
|
|
Open-end Wrench size(mm) |
19 |
|
|
Operating temperature |
+15℃~+35℃ |
|
|
Storage temperature |
-40℃~+75℃ |
|
